Description

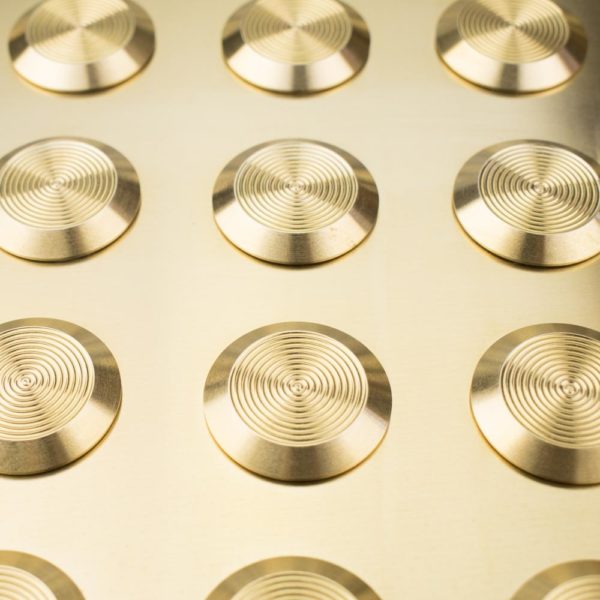

Brass tactile plate with 72 individual brass tactiles fully adhered to a 2mm brass 300mm x 600mm plate. 8 year warranty.
Brass tactile plate with 72 indicators offer the best solution to areas where individual
studs are not achievable
Our solid Brass tactile Plate is manufactured with a 3M heavy duty self-adhesive compound adhesive. Once the tactiles have been securely fixed to the 2mm brass polished plate it becomes very difficult to force off or to remove the tactiles.
The plates can be installed on most types of surfaces and looks aesthetically pleasing. The plates are corrosion proof and the tactiles have been anti-slip rated to a P5
Plate size: 300mm x 600mm containing 72 tactile indicators
LRV 58.19 in dry – 51.47 in wet
Plate thickness: 2mm
Tactile size: 35mm diameter x 4.5mm
Overhaul thickness: 6.5mm
Weight/Packaging: 4.5Kgs – Purchased individual or 5 x 1 carton
Guaranteed: 8 Years
Use: Internal & external use
Fixing: Direct stick using suitable adhesive and/or screw fixing
Test reports: Available upon request
Availability: Stock item
Compliance
Manufactured to meet Australian & New Zealand standards 1428.4.1(2009)
Meets the classification YBPN 25-34 according to AS/NZS: 4586:2004
